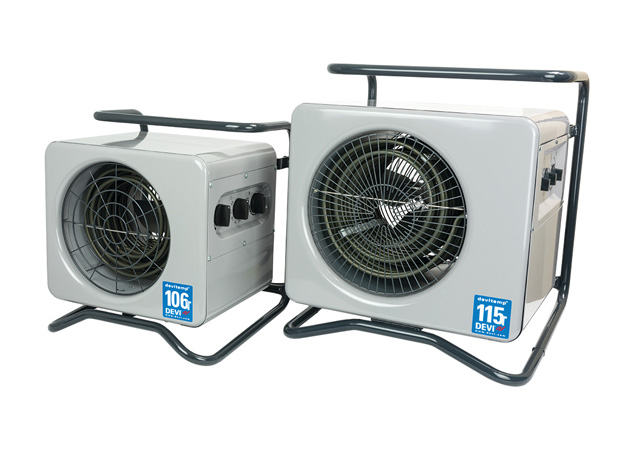

DEVItemp™ Fan Heater

The DEVItemp™ fan heater is a comprehensive portable heating system that offers a temporary yet efficient heating solution. It is designed to withstand harsh conditions such as heat, cold, moisture, and heavy use on construction sites. The built-in thermostat maintains a constant desired temperature while minimizing electricity consumption. The fan heater can be used either as a portable device or permanently installed for long-term use.

DEVItemp™ Fan Heater

Benefits

  • Rugged construction
  • Corrosion-resistant
  • Portable or permanent installation
  • Easy regulation, five-step control unit for airflow
  • Thermostat to ensure required temperature remains constant
  • IP Class 44

Specification

Timer thermostat

On types named “T” up to 24 hours presetting.

Adjustable thermostat

3 - 6 KW 0 °C to 40 °C.
9 - 21 KW 0 °C to 40 °C.

Safety thermostat

3 - 6 KW = 110 °C.
9 - 21 KW = 160 °C.
3 - 21 KW = 125 °C.

IP Class

IP 44

Colour

RAL 7004

Warranty scope

2 years

Standard compliance:

• IEC60335-2-30

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Table

Item no.  Type  W x H x D [mm]  Volatage  K / W  m³ / h  ∆Т Temp. [°C]  Weight [kg]  dB
69810562 303T 410 x 435 x 420 230 V~ 3 400 / 650 14 / 19 12 32 - 35
69810554 103T 410 x 435 x 420 3 x 400 V~ 3 400 / 650 14 / 19 13,9 32 - 35
69811537 106T 410 x 435 x 420 3 × 400 V~ 6 400 / 650 21 / 28 14,2 33 - 42
69812543 109T 410 x 435 x 420 3 x 400 V~ 9 400 / 650 36 / 45 14,9 33 - 42
69812550 115S 505 x 540 x 510 3 x 500 V~ 15 800 / 1400 26 / 30 23,6 42 - 52
69813509 115T 505 x 540 x 510 3 x 400 V~ 15 800 / 1400 26 / 30 23,6 42 - 52
69814515 121T 505 x 540 x 510 3 x 400 V~ 21 800 / 1400 36.5 / 42 25,7 42 - 52
19400514 Wall mounting kitfor DEVItempTM 303T, 103T, 106T, 109T
19400522 Wall mounting kit for DEVItempTM 115S, 115T, 121T
